Dodge Ram 1500 Bed Rack for Retrax XR Covers - Straight Bed | XTR1

This is the XTR1 Bed Rack for Retrax XR Covers — purpose-built to mount directly to the Retrax XR tonneau cover's integrated T-slot rails (cover sold separately — this listing is the rack). If you run a Retrax XR on your Ram 1500 and thought a bed rack meant giving up your tonneau, the XTR1 Retrax XR Build mounts directly to the cover’s own T-slot rails, so you keep your weather-sealed, locking bed and gain a full overland & utility rack on top — no drilling, no compromise.

Bed Geometry Note: Dodge Ram trucks come in both straight and tapered bed configurations. This listing is optimized for the straight bed variant. Please verify your bed measurement and rail spacing before ordering to ensure proper fit.

What it does

Bolts directly to your Retrax XR cover’s T-slot rails using the included bedrail brackets, which mount directly to the cover’s rails without drilling any holes. It turns your Ram 1500 bed into a fully modular cargo platform: carry a rooftop tent, awning, recovery gear, fuel, and water on top, while keeping the bed underneath locked and weather-sealed. Works as a Dodge Ram ladder rack, a cargo rack for lumber and conduit, or a no-nonsense overland basecamp — built from solid T-slot aluminum, not flimsy sheet metal.

Built for the Retrax XR Cover

This is not a universal bracket forced to fit. The XTR1 Retrax XR Build ships pre-configured for the Retrax XR’s integrated T-slot rail system — the bedrail brackets connect your uprights straight to the cover, so the rack and the tonneau work as one. Already running a Retrax XR on your Ram 1500? This is your exact-fit rack.

Why XTR1 is different

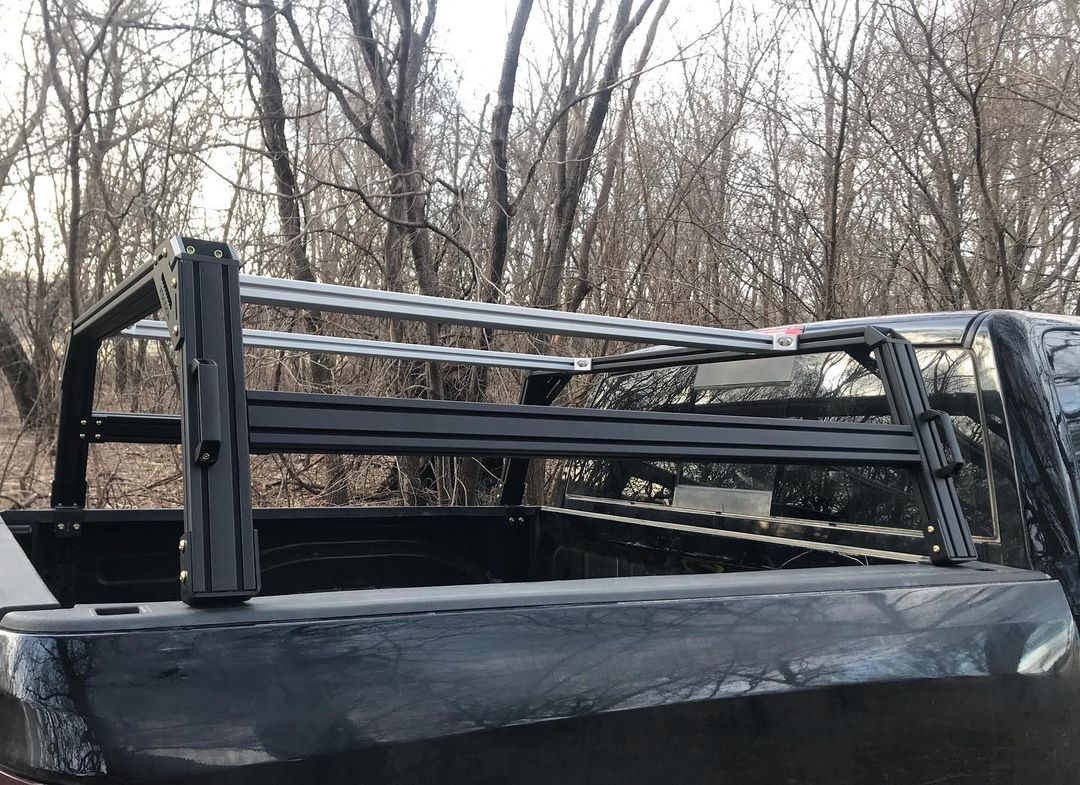

The XTR1 is our original four-upright bed rack and the foundation that established the Xtrusion Overland rack system. Its open design provides excellent side access, outstanding accessory compatibility, and a clean layout that’s equally at home on work trucks, overland builds, and daily drivers. It comes with 4 uprights (one in each corner), 2 side braces, 2 top crossbars, and 2 top support braces. Fewer moving parts, lighter weight, and a clean, traditional look that ages well under trail dust and jobsite grime.

• Solid extruded aluminum — the strongest, lightest, most modular material on the market, with no rust and no sacrifice in features.
• T-slot on every linear surface — near-infinite mounting points; mount anything in any position and reconfigure in minutes.
• 4 uprights (one in each corner) — classic, proven load distribution for tents, awnings, recovery gear, and commercial gear.
• Tonneau-friendly by design — built around your Retrax XR cover, not in spite of it.

Choose XTR1 if you...

Want more than just a rack. It is the starting point for a modular truck system. Start with the bed rack, then add accessories as your needs change. Depending on your setup, the XTR1 can work with MOLLE panels, AXS Gates, slide-out storage, recovery gear mounts, lighting, water storage, and other rack-mounted accessories.

Because the rack is built around T-slot extrusion, you can continue adapting the layout instead of replacing the entire system as your build grows.

What’s included

• 2 Top Crossbars
• 4 Uprights (Columns)
• 2 Top Support Braces (1530 Black)
• 2 Side Braces (1530 Black)
• 6 Bedrail Brackets (connect uprights to your Retrax XR cover)

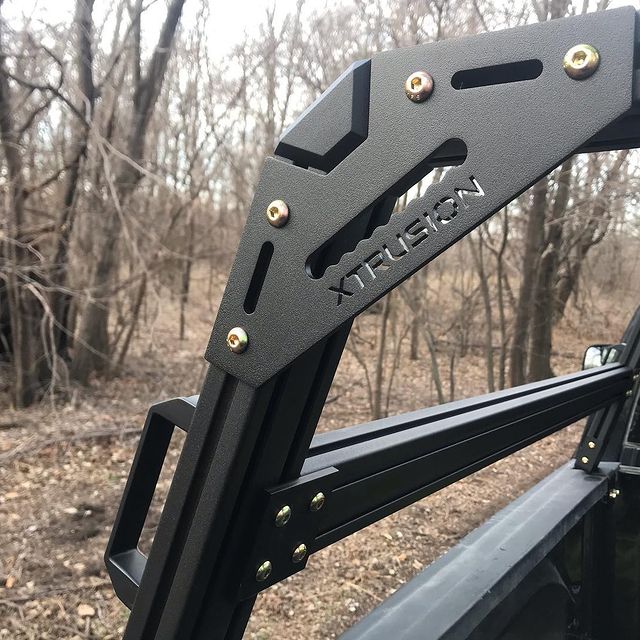

• 4 Top Corner Brackets (connect crossbars and uprights)
• All screws and hardware required for assembly
• Set of Black XTR Off-Road Reinforcement Plates ($110 value)
• Metal Handle Kit — Set of 4 ($40 value)
• 16 pcs Drop-In T-Nuts — 5/16-8 ($12 value)
• 16 pcs Button Head Screws — 5/16-8 x 5/8" ($8.80 value)

Accessory Stages — outfit your bed rack now and save big

• Stage 1: Bed Rack only

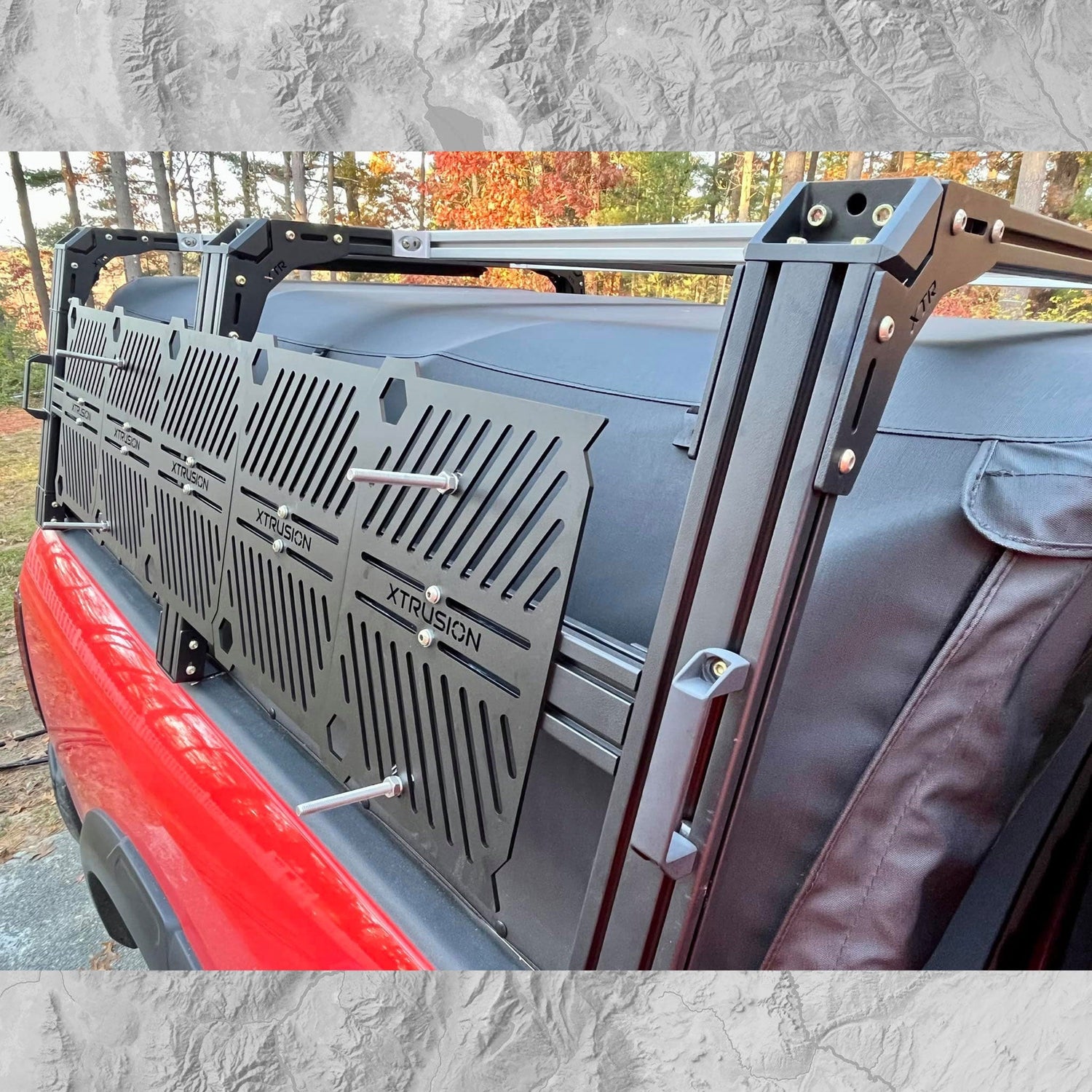

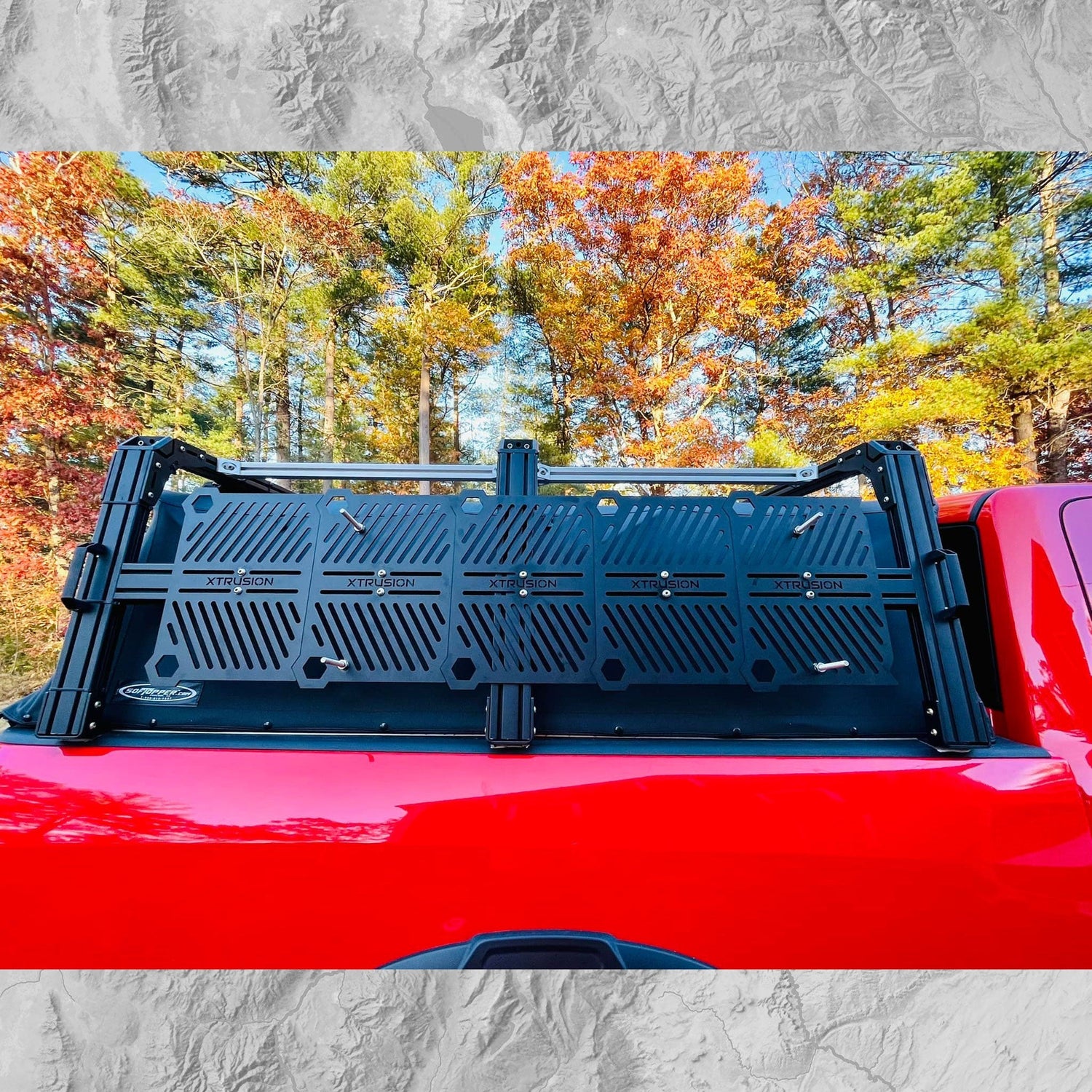

• Stage 2: Bed Rack + 8 MOLLE Plates (12x9 plates for mid-height racks & 16x11 plates for cab-height racks)

Specifications

Rated capacity (evenly distributed): 450 lb dynamic off-road, 850 lb dynamic on-road, 1,550 lb static — or OEM bed rail capacity, whichever is less.

Looking for something a little different?

We build XTR1 and XTR3 racks for every Ram 1500 setup — pick the one for your bed:

• XTR1 Pre-Configured Bed Rack (Straight Bed): Ram 1500 XTR1 Pre-configured Bed Rack (Straight)
• XTR1 Pre-Configured Bed Rack (Tapered Bed): Ram 1500 XTR1 Pre-configured Bed Rack (Tapered)
• XTR1 Bed Rack for Dodge/Ram 1500 Straight Bed (Custom): Ram 1500 XTR1 Custom Height Bed Rack (Straight)
• XTR1 Bed Rack for Dodge/Ram 1500 Tapered Bed (Custom): Ram 1500 XTR1 Custom Height Bed Rack (Tapered)
• XTR1 Bed Rack for Soft Topper Cover - Dodge/Ram 1500 Select Straight or Tapered Bed: Ram 1500 XTR1 Soft Topper Bed Rack
• XTR1 Bed Rack for Retrax XR Cover - Dodge Ram 1500 - Tapered Bed: Ram 1500 XTR1 Retrax XR Build (Tapered)
• Ram 1500 Pre-Configured Bed Rack (Straight Bed) | XTR3: Ram 1500 XTR3 Pre-configured Bed Rack (Straight)
• Ram 1500 Pre-Configured Bed Rack (Tapered Bed) | XTR3: Ram 1500 XTR3 Pre-configured Bed Rack (Tapered)
• Ram 1500 Overland Bed Rack | XTR3 Custom Height - Straight Bed: Ram 1500 XTR3 Custom Height Bed Rack (Straight)
• Ram 1500 Overland Bed Rack | XTR3 Custom Height - Tapered Bed: Ram 1500 XTR3 Custom Height Bed Rack (Tapered)
• Ram 1500 Bed Rack for Soft Topper Covers | XTR3: Ram 1500 XTR3 Soft Topper Bed Rack
• Dodge Ram 1500 Bed Rack for Retrax XR Covers | XTR3 (Straight Bed): Ram 1500 XTR3 Retrax XR Build (Straight)
• Dodge Ram 1500 Bed Rack for Retrax XR Covers | XTR3 (Tapered Bed): Ram 1500 XTR3 Retrax XR Build (Tapered)
• Have another built-in T-slot cover in mind? Email support@xtrusiondesigns.com and our team will configure the right fit.

Explore more Dodge Ram gear

• See every Ram 1500 rack option on our Ram 1500 Bed Racks collection.
• Need a cover too? Browse our Ram 1500 Bed Covers & Soft Toppers collection.

Frequently Asked Questions

Will this rack work with a Softopper, FasTop, or Bestop on my Ram?

No. This rack is designed to mount to your Retrax XR tonneau cover’s T-slot rails. If you run a canvas-style soft topper, look at our XTR1 Soft Topper Bed Rack or XTR3 Soft Topper Bed Rack instead.

Does this require drilling into my Ram?

No. The rack mounts directly to the Retrax XR cover’s T-slot rails using the included bedrail brackets. No permanent modifications to your truck or cover, and no compromising your factory finish.

How do I know if I need the Straight Bed or Tapered Bed version?

Dodge Ram trucks come with either a straight or tapered bed, depending on the model year and factory configuration. This listing is for the straight bed. To find out, measure from the inside edge of the bed rail, measure both the front width and rear width of your bed. If the measurements are different, you have a tapered bed. If they are the same, you have a straight bed.
