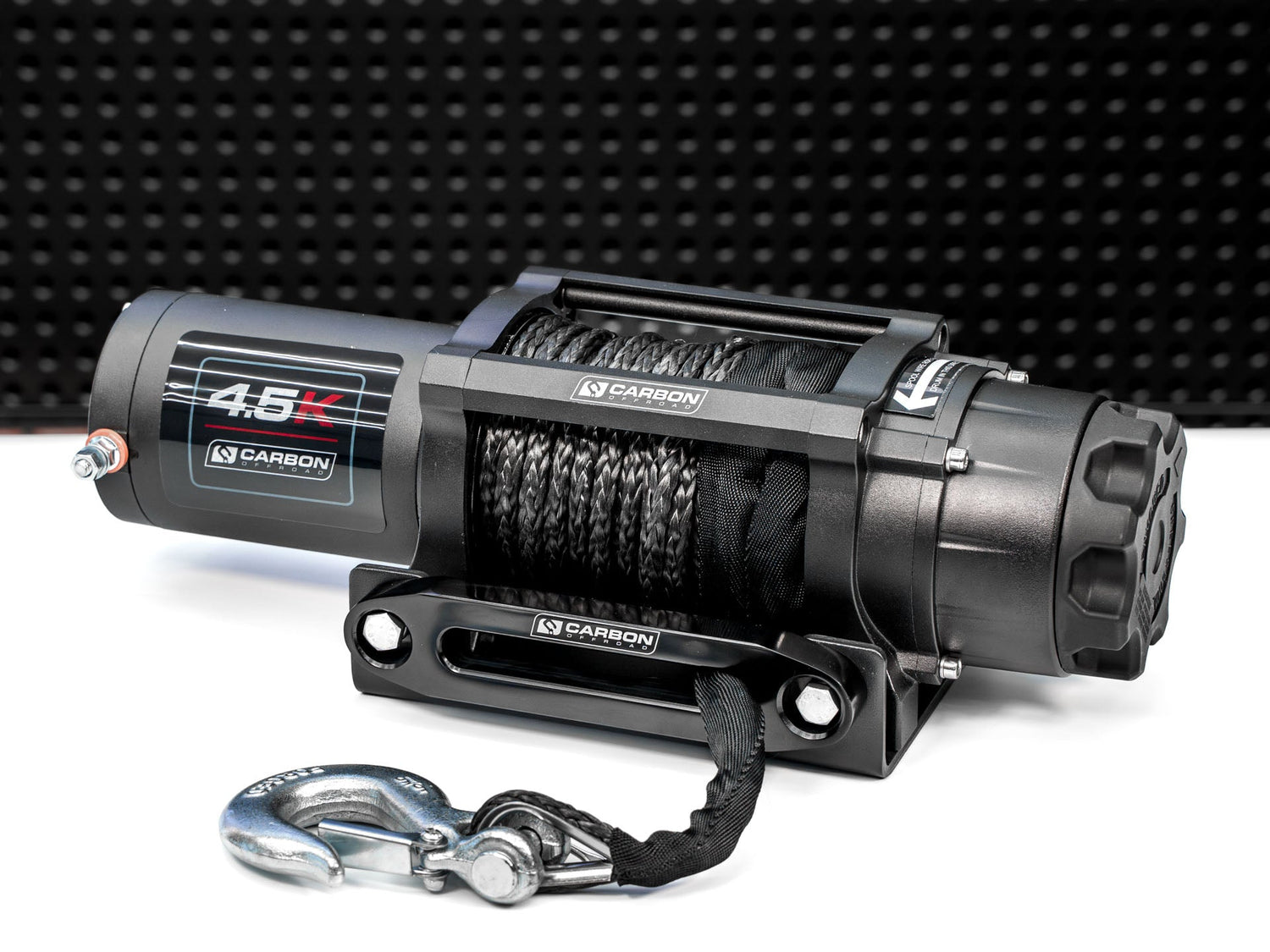

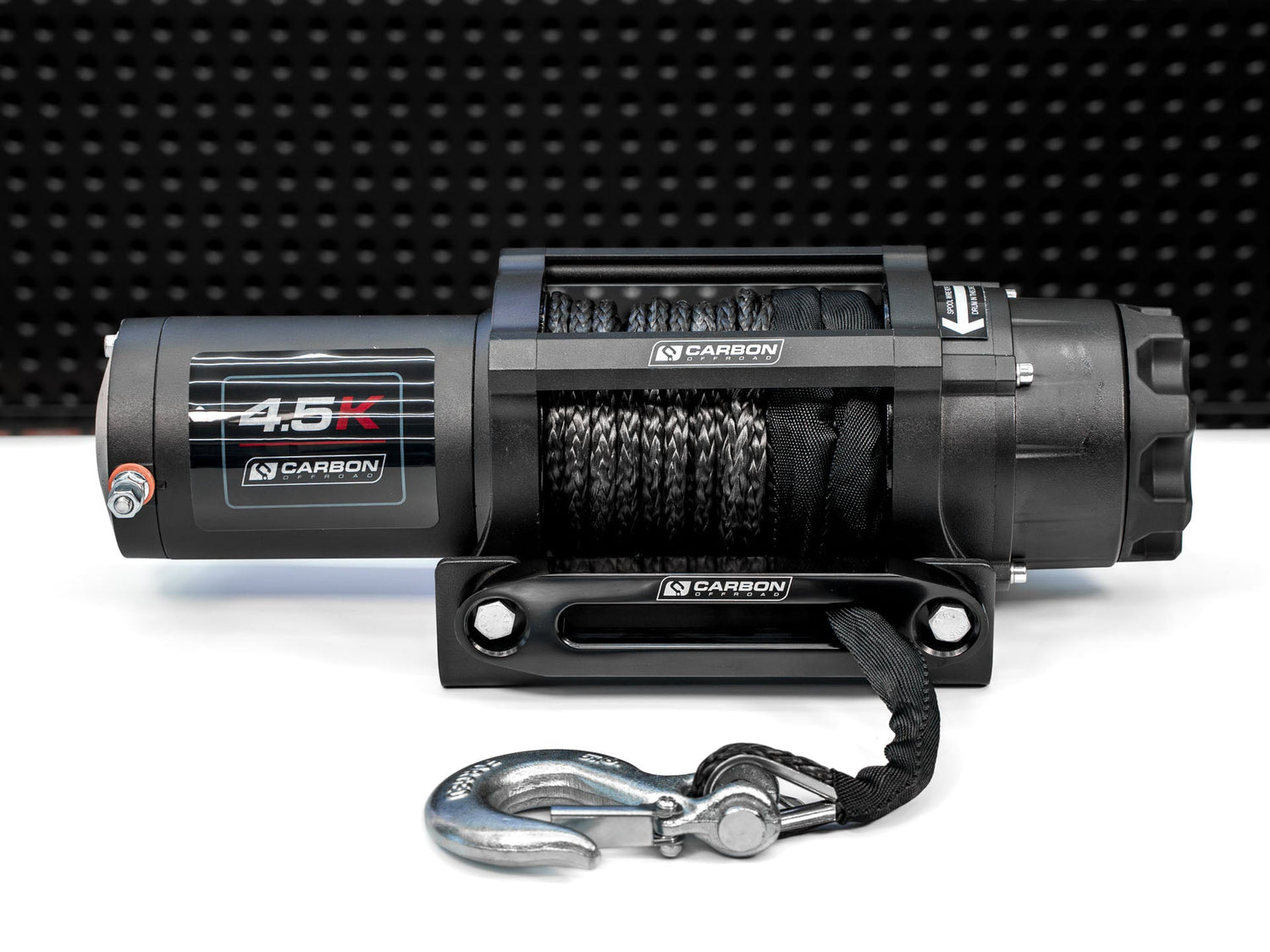

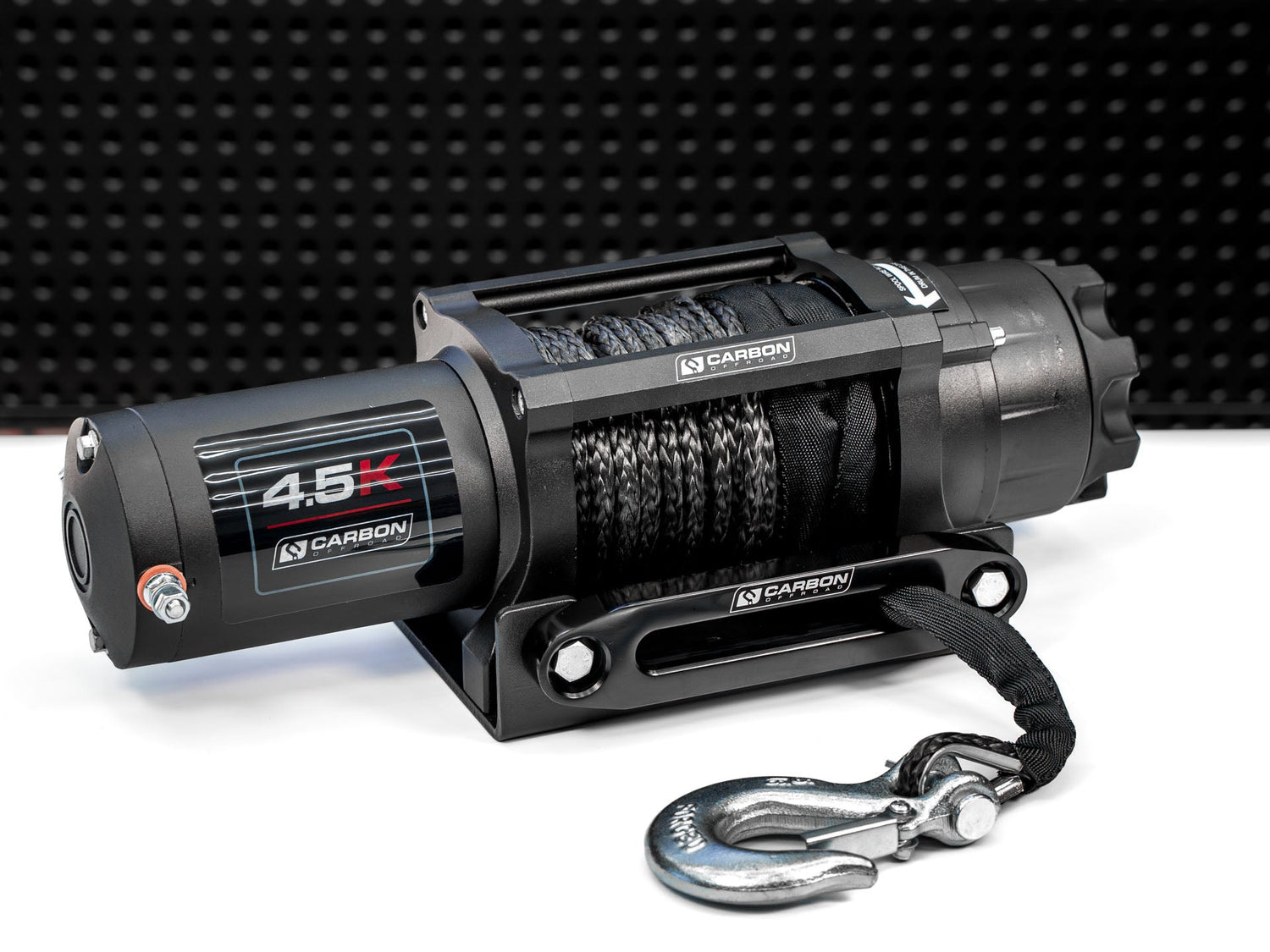

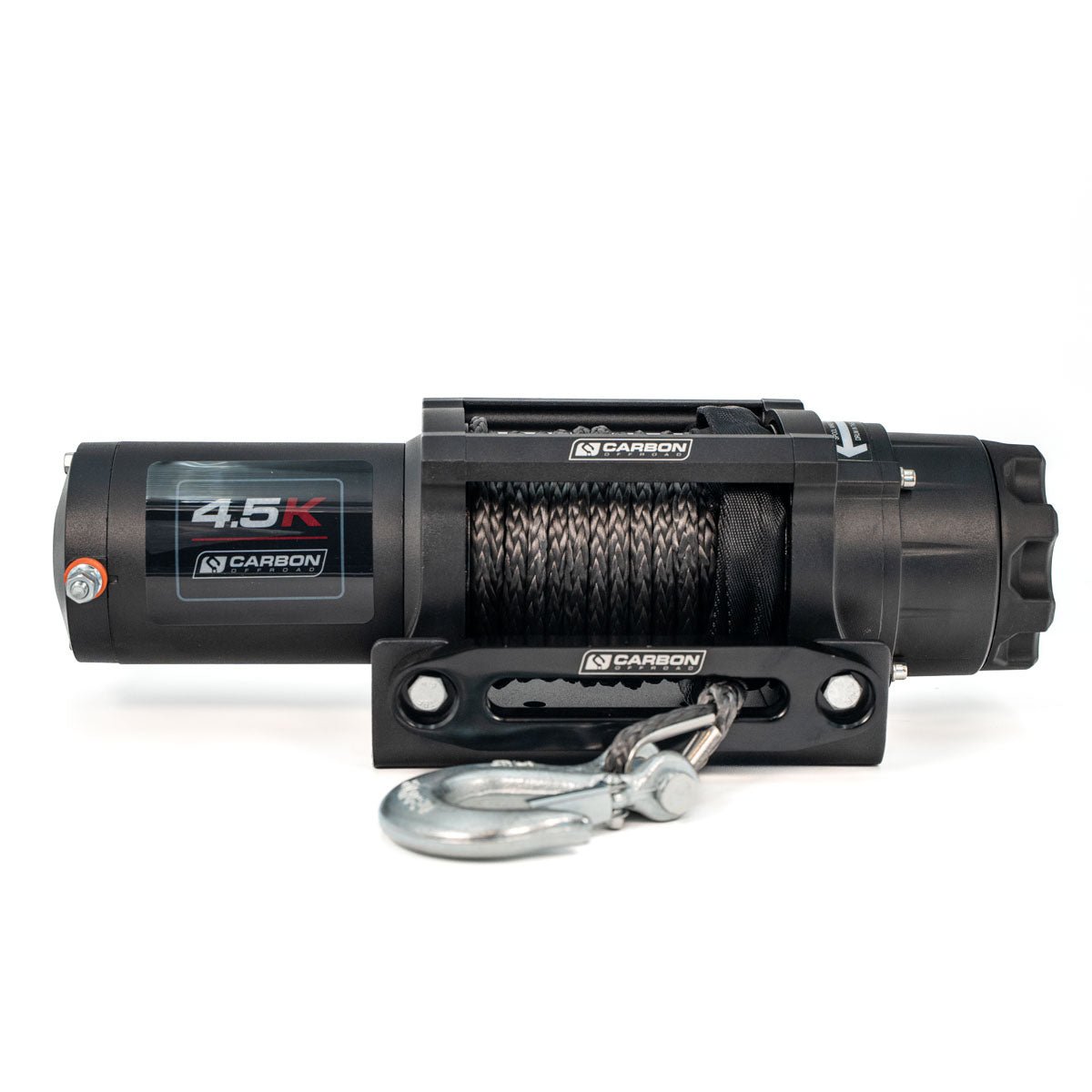

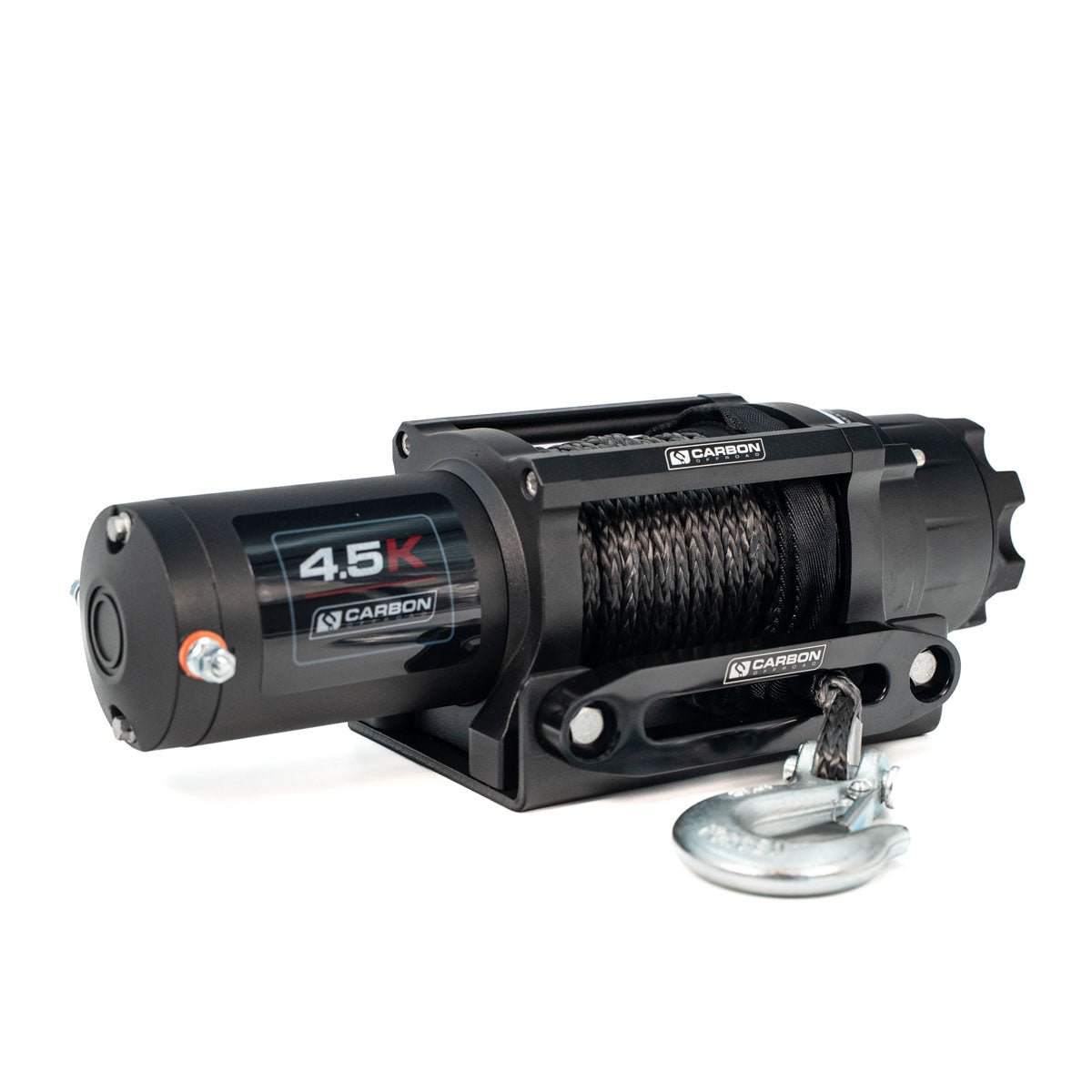

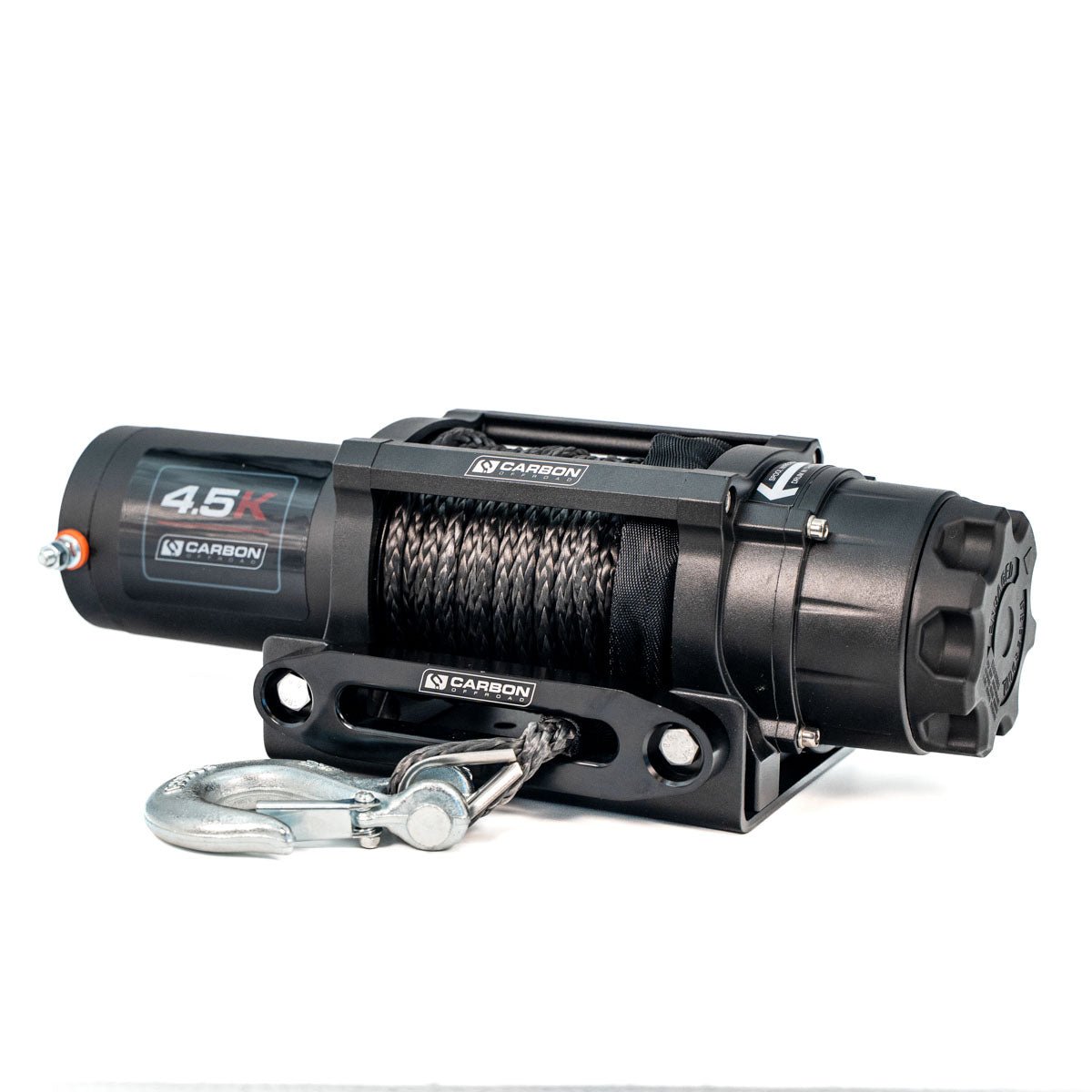

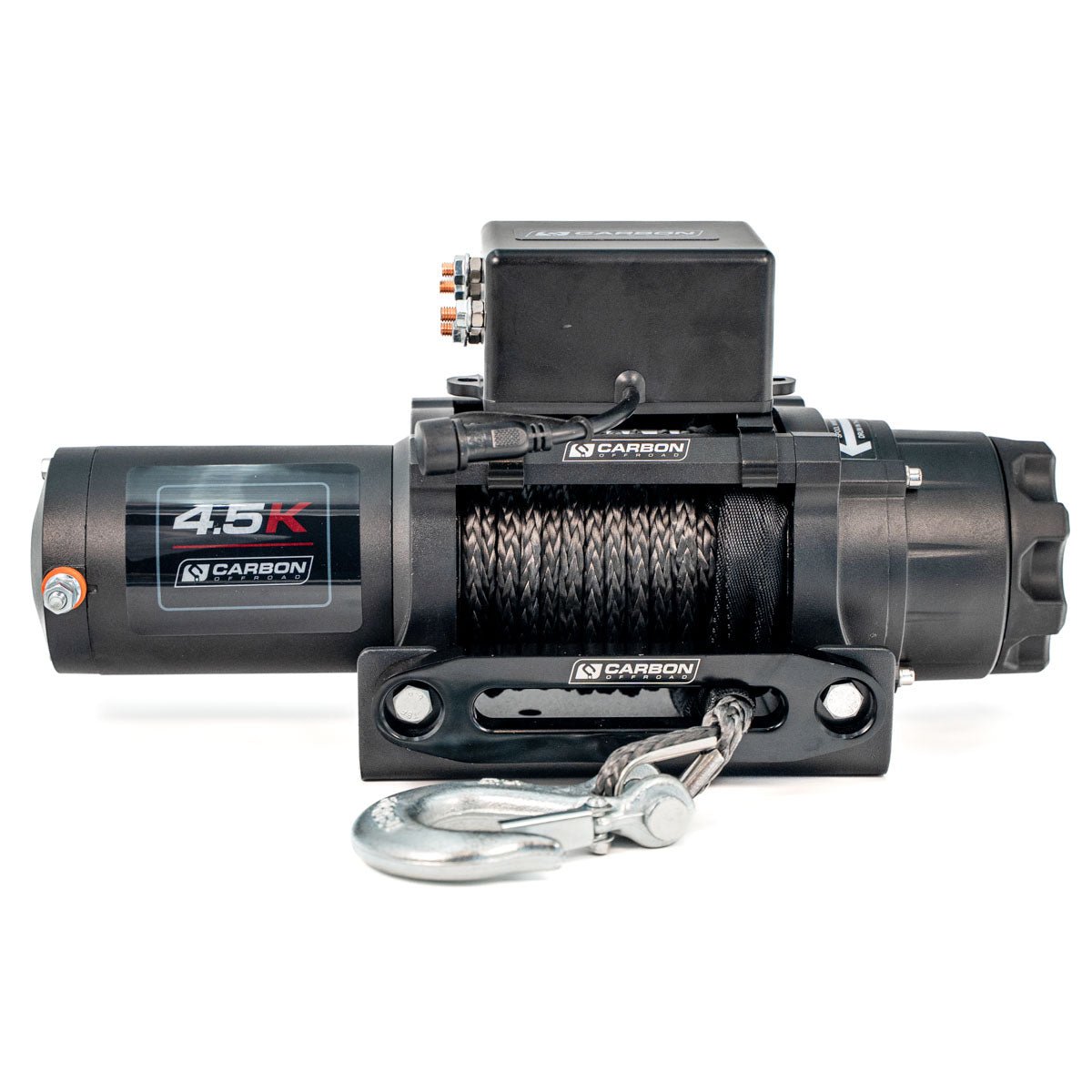

Carbon Winch 4500lb ATV Trailer with Synthetic Rope and Wireless Control
Carbon Winch 4500lb ATV Trailer with Synthetic Rope and Wireless Control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Carbon Winch 4500lb ATV Trailer with Synthetic Rope and Wireless Co...
Description
Description
Built for heavier side-by-sides and utility vehicles, the Scout Pro 4.5K offers 4,500lb capacity and a compact, rugged build. Perfect for small car and equipment trailers, ideal for mounting in the back of a van to help load heavy equipment, and has even been used to load tinnies and open cattle gates on livestock truck trailers.
- 4,500lb (2,041kg) Rated Pull – Extra capacity for demanding ATV/UTV use
- 1.9HP Motor – Compact with reliable pulling power
- 176:1 Gear Ratio – Strong, controlled operation
- 43ft (13m) Synthetic Rope – Lightweight and durable
- Mounting Bolt Pattern – 6.57in x 2.99in (167mm x 76mm)
- Drum Dimensions – 1.26in x 2.87in (32mm x 73mm)
- Winch Dimensions – 14.92in x 4.72in x 4.53in (379mm x 120mm x 115mm)
- IP66 Rated winch and solenoid (excludes remote control and switch)

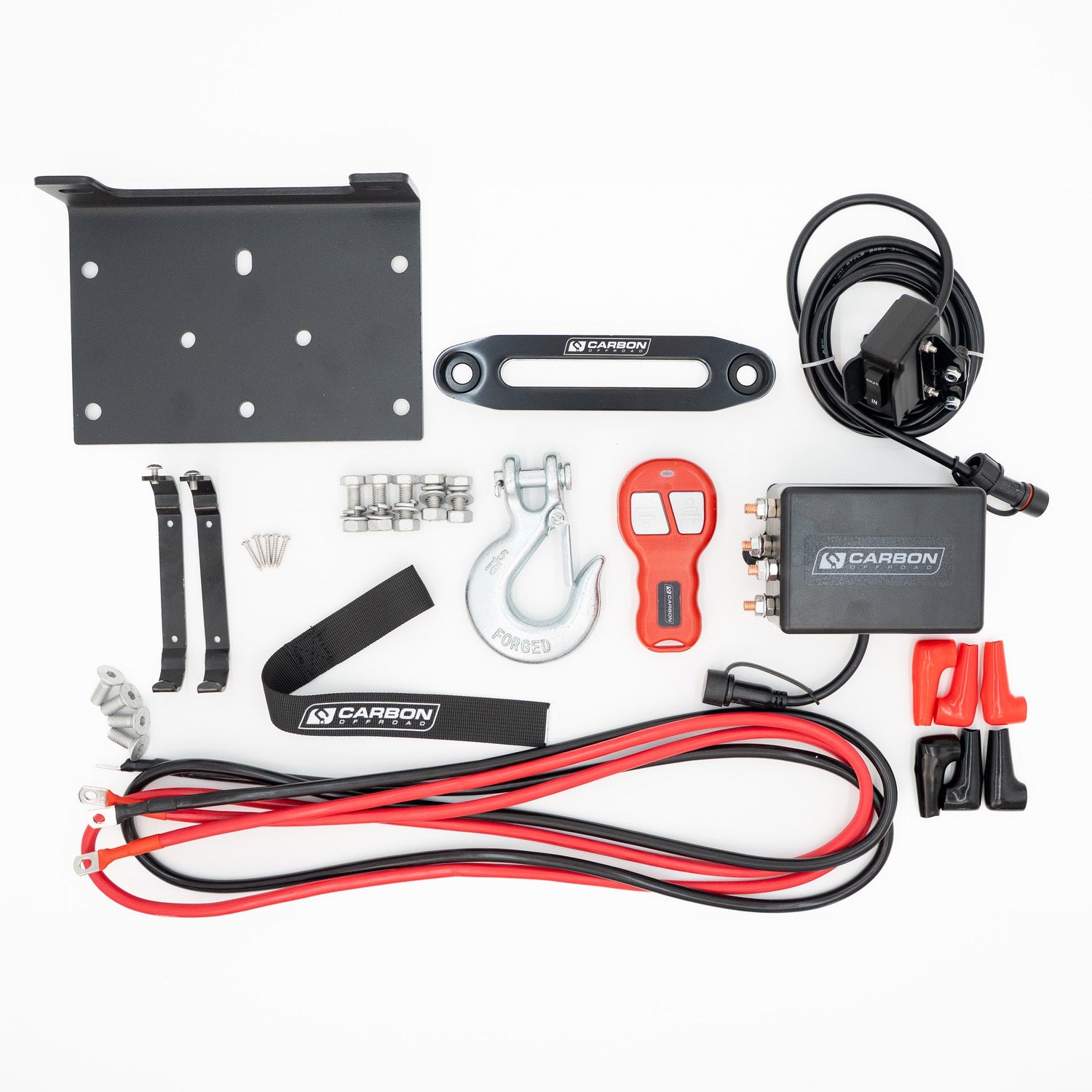

- Wired + Wireless Remotes – Flexible control options
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 20.4(6.2) | 31 Amps | 1/4500(2040) |
| 1000 | 14.2(4.3) | 65Amps | 2/3750(1700) |
| 2000 | 10.9(3.3) | 96Amps | 3/3510(1595) |
| 3000 | 7.7(2.4) | 125Amps | 4/3300(1500) |
| 4500 | 4.9(1.5) | 175.Amps | |
